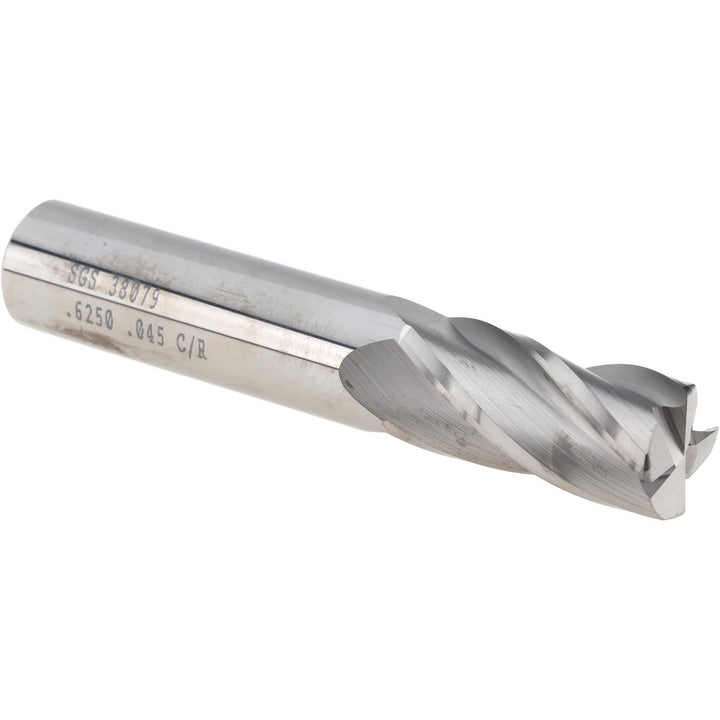

5/8" 4-Flute Solid Carbide Corner Radius End Mill - SGS 38079

MFR# 38079Series 01C

$161.79List $207.51 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter5/8

Flutes4

MaterialSolid Carbide

CoatingBright/Uncoated

Description

The SGS 38079 is a 5/8 4-flute Solid Carbide (Micrograin) corner radius end mill. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium. 1-1/4 length of cut, 3-1/2 overall length. Series 01C.

Specifications

CentercuttingNo

ChipbreakerNo

Coating finishBright/Uncoated

Coolant throughNo

Corner radius0.0450

Corner radius tolerance+0.00000 to -0.00200 in

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withEnd Mill Toolholders

Helix styleMedium

Length of cut in1-1/4

Length typeShort

Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material

Material gradeMicrograin

Material removal typeRoughing & Finishing

Mill diameter in5/8

Mill diameter tolerance-0.0020/-0.0010 in

Number of flutes4

Overall length in3-1/2

PitchNormal

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium

Secondary workpiece materialHard Material

Shank diameter in5/8

Shank diameter toleranceh6

Shank typeWeldon Flat

Single or double endSingle

Variable helixNo

Variable indexYes
