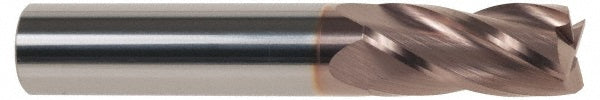

5/8" 4-Flute Solid Carbide Square End Mill, TiCN - SGS 39067

MFR# 39067Series 10B

$138.70List $177.89 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter5/8

Flutes4

MaterialSolid Carbide

CoatingTiCN

Description

The SGS 39067 is a 5/8 4-flute Solid Carbide (Micrograin) square end mill with a TiCN finish for longer tool life. 1-1/4 length of cut, 3-1/2 overall length. Series 10B.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishTiCN

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut in1-1/4

Length of cut range1.2500 - 1.5000

Length typeRegular

Material gradeMicrograin

Mill diameter in5/8

Mill diameter tolerance+0.000/-0.002 in

Number of flutes4

Overall length in3-1/2

Shank diameter in5/8

Shank diameter tolerance+0.00000/-0.00043 in

Shank typeStraight-Cylindrical

Variable helixNo

Variable indexYes
