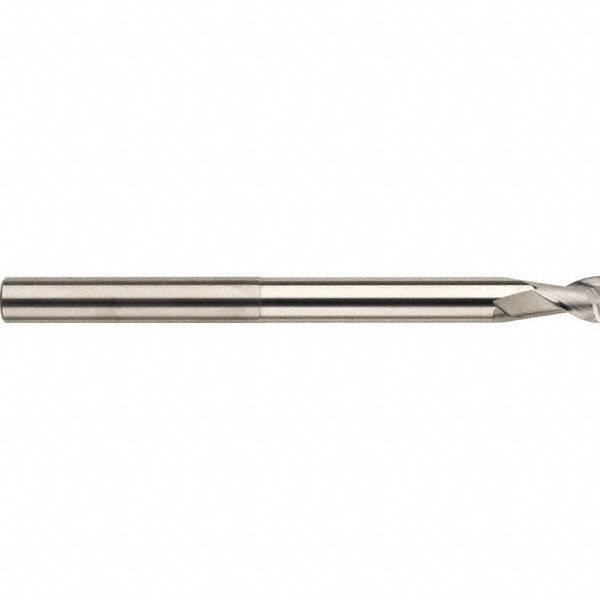

0.2362" 2-Flute Solid Carbide Square End Mill - SGS 44561

SGS

0.2362" 2-Flute Solid Carbide Square End Mill - SGS 44561

MFR# 44561Series 47ML

$73.05List $93.69 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
MaterialSolid Carbide
CoatingBright/Uncoated

Description

The SGS 44561 is a 0.2362 2-flute Solid Carbide (Micrograin) square end mill. Suited for non-ferrous metal. 0.3937 length of cut. Series 47ML.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishBright/Uncoated
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachYes
Flute directionRight Hand
Flute typeSpiral
Helix angle35
Length of cut0.3937
Length of cut range0.3000 - 0.5000
Length typeLong
Material gradeMicrograin
Mill diameter0.2362
Mill diameter tolerance+0.0025/-0.0100 mm
Neck length1.7323
Number of flutes2
Overall length (mm)100
Primary workpiece materialNon-Ferrous Metal
Reach length2.126
Shank diameter0.2362
Shank diameter tolerance+0.000/-0.008 mm
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
