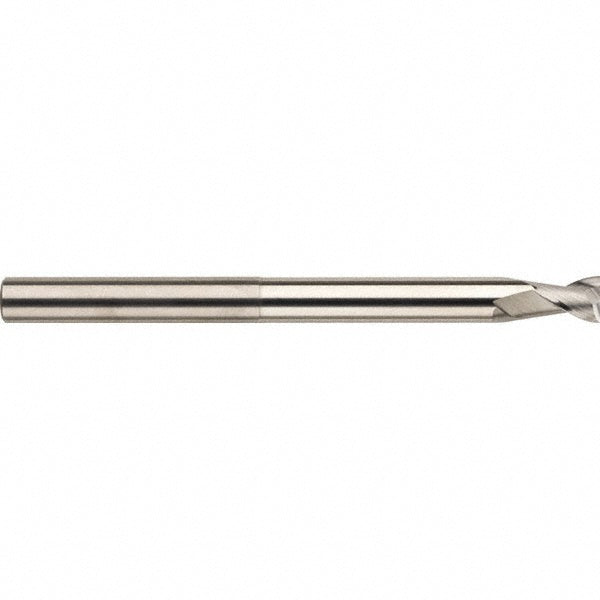

0.2362" 2-Flute Solid Carbide Square End Mill, TiB2 - SGS 44609

MFR# 44609Series 47ML

$89.02List $114.18 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes2

MaterialSolid Carbide

CoatingTiB2

Description

The SGS 44609 is a 0.2362 2-flute Solid Carbide (Micrograin) square end mill with a Titanium Diboride finish for longer tool life. Suited for non-ferrous metal. 0.3937 length of cut. Series 47ML.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishTiB2

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachYes

Flute directionRight Hand

Flute typeSpiral

Helix angle35

Length of cut0.3937

Length of cut range0.3000 - 0.5000

Length typeLong

Material gradeMicrograin

Mill diameter0.2362

Mill diameter tolerance+0.0025/-0.0100 mm

Neck length1.7323

Number of flutes2

Overall length (mm)100

Primary workpiece materialNon-Ferrous Metal

Reach length2.126

Shank diameter0.2362

Shank diameter tolerance+0.000/-0.008 mm

Shank typeStraight-Cylindrical

Variable helixNo

Variable indexNo
