Supermill

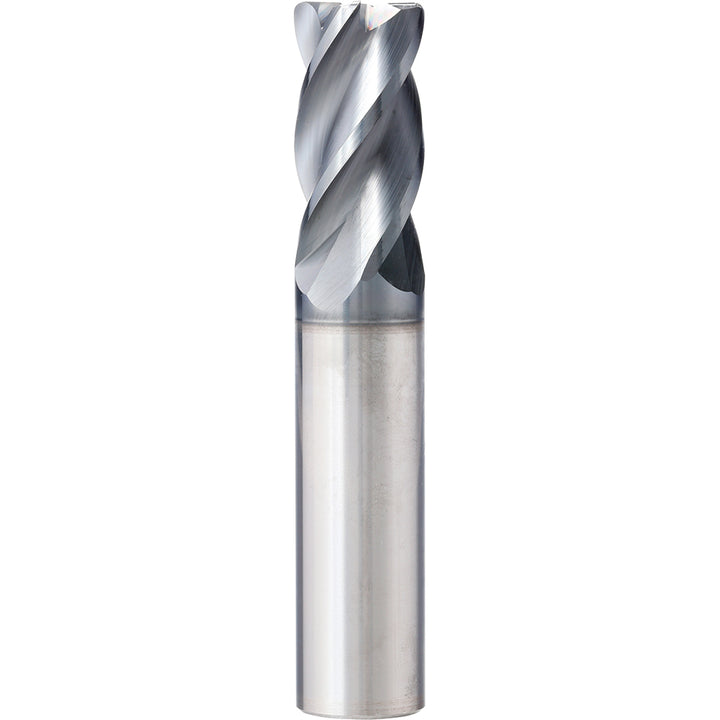

3/16" 4-Flute Solid Carbide Square End Mill, AlTiN - Supermill 5253651

MFR# 5253651Series XP-NB

$38.77List $49.73 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/16

Flutes4

MaterialSolid Carbide

CoatingAlTiN

Description

The Supermill 5253651 is a 3/16 4-flute Solid Carbide (Micrograin) square end mill with a AlTiN finish for longer tool life. Suited for hardened materials, high-temp alloy. 9/16 length of cut, 2 overall length. Series XP-NB.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishAlTiN

Coating finish familyAlTiN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle45

Length of cut in9/16

Length of cut range0.5000 - 0.6000

Material gradeMicrograin

Mill diameter in3/16

Number of flutes4

Overall length in2

Primary workpiece materialHardened Materials; High-Temp Alloy

Shank diameter in3/16

Single or double endSingle

System of measurementFractional Inch

Variable helixNo

Variable indexYes
