Supermill

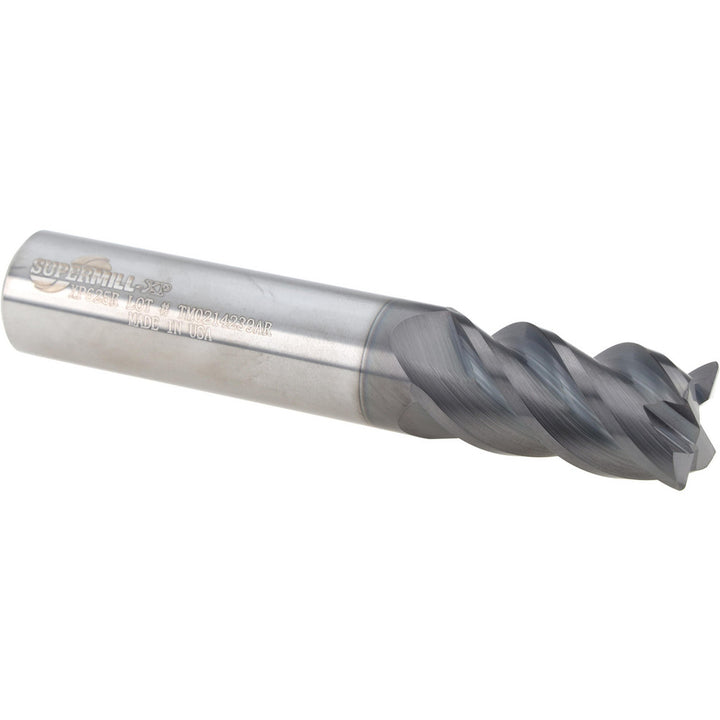

5/8" 4-Flute Solid Carbide Corner Radius End Mill, AlCrN - Supermill 5253808

MFR# 5253808Series XP

$211.99List $271.88 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter5/8

Flutes4

MaterialSolid Carbide

CoatingAlCrN

Description

The Supermill 5253808 is a 5/8 4-flute Solid Carbide (Micrograin) corner radius end mill with a AlCrN finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium. 1-1/4 length of cut, 3-1/2 overall length. Series XP.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishAlCrN

Coolant throughNo

Corner radius0.0300

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withToolholders

Helix styleHigh

Length of cut in1-1/4

Length typeShort

Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium

Material gradeMicrograin

Material removal typeRoughing & Finishing

Mill diameter in5/8

Number of flutes4

Overall length in3-1/2

PitchNormal

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium

Shank diameter in5/8

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexYes
