Walter-Prototyp

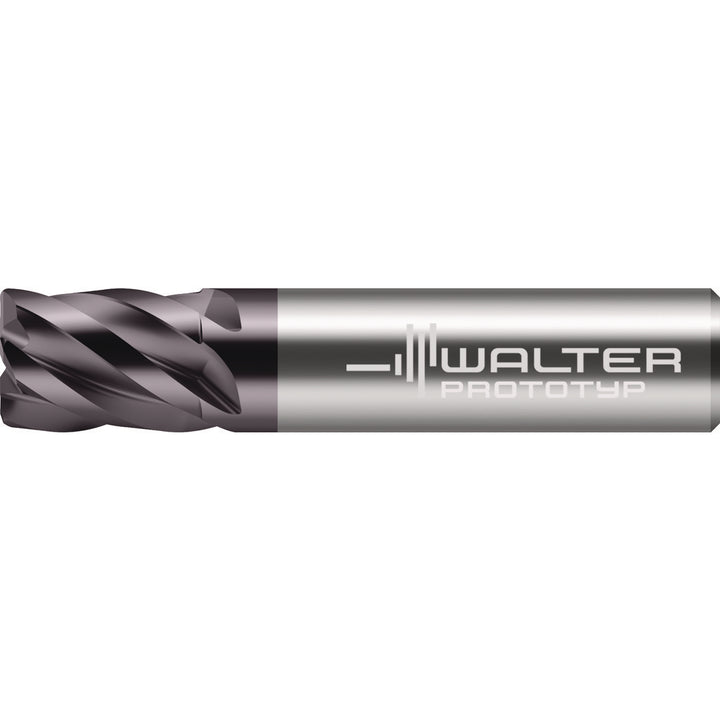

3/8" 5-Flute Solid Carbide Corner Radius End Mill, TiAlN/THL - Walter-Prototyp 8414978

MFR# 8414978Cat# MA230.9.53A5S038-WJ30TFSeries MA230.A-5-R

$70.16List $89.98 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/8

Flutes5

MaterialSolid Carbide

CoatingTiAlN/THL

Description

The Walter-Prototyp 8414978 is a 3/8 5-flute Solid Carbide corner radius end mill with a TiAlN/THL finish for longer tool life. Suited for steel. 1 length of cut, 2-1/2 overall length. Series MA230.A-5-R.

Specifications

CentercuttingNo

ChipbreakerNo

Coating finishTiAlN/THL

Coolant throughNo

Corner radius0.0150

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Length of cut in1

Manufacturers catalog numberMA230.9.53A5S038-WJ30TF

Material removal typeRoughing & Finishing

Mill diameter in3/8

Number of flutes5

Overall length in2-1/2

Primary workpiece materialSteel

Reach length1.2008

Secondary workpiece materialCast Iron; Stainless Steel; Superalloys & Titanium

Shank diameter in3/8

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle
