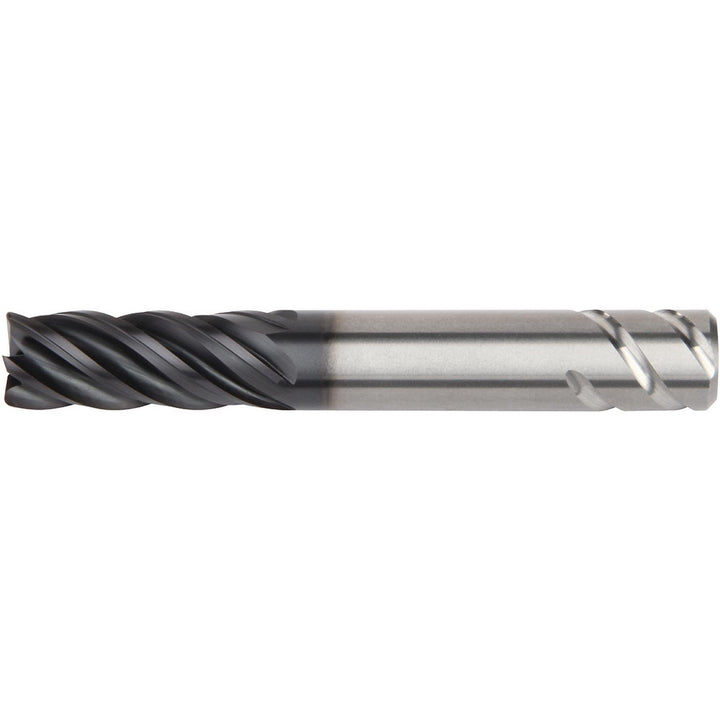

5/8" 5-Flute Solid Carbide Corner Radius End Mill, WS15PE - Widia 5594873

Widia

5/8" 5-Flute Solid Carbide Corner Radius End Mill, WS15PE - Widia 5594873

MFR# 5594873Series 5V0E

$278.75List $357.50 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/8
Flutes5
MaterialSolid Carbide
CoatingWS15PE

Description

The Widia 5594873 is a 5/8 5-flute Solid Carbide (WS15PE) corner radius end mill with a WS15PE finish for longer tool life. Suited for high temperature alloy. 1-1/4 length of cut, 3-1/2 overall length. Series 5V0E.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishWS15PE
Coolant throughNo
Corner radius0.0300
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withToolholders
Helix styleMedium
Length of cut in1-1/4
Length typeRegular
Material applicationSteel; Stainless Steel; High-Temperature Alloy; Hard Material
Material gradeWS15PE
Material removal typeRoughing & Finishing
Mill diameter in5/8
Number of flutes5
Overall length in3-1/2
PitchClose
Primary workpiece materialHigh Temperature Alloy
Reach length1.2500
Secondary workpiece materialSteel; Stainless Steel; Hard Material
Shank diameter in5/8
Shank typeWeldon Flat
Single or double endSingle
Variable helixNo
Variable indexYes
