Widia

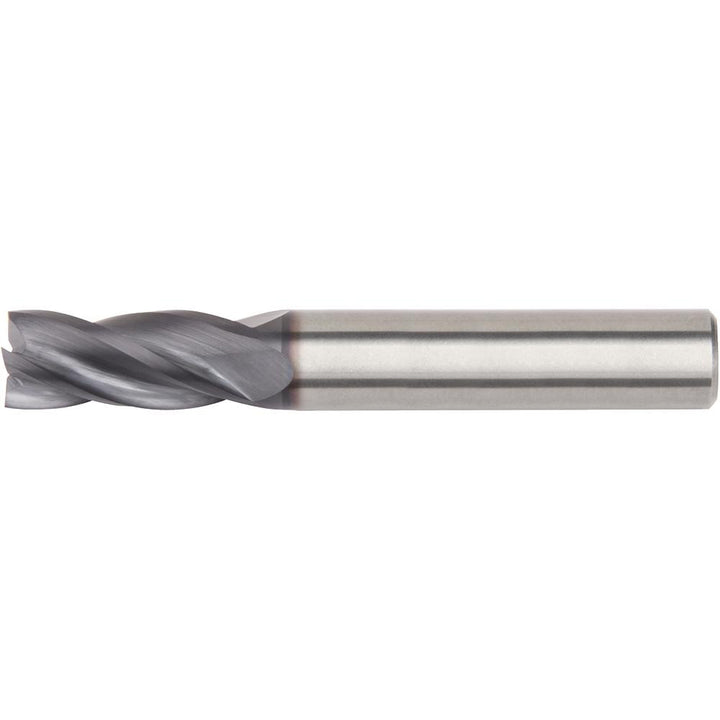

5/8" 4-Flute Solid Carbide Corner Radius End Mill, TiAlN - Widia 6282535

MFR# 6282535Series I4R

$100.16List $128.47 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter5/8

Flutes4

MaterialSolid Carbide

CoatingTiAlN

Description

The Widia 6282535 is a 5/8 4-flute Solid Carbide corner radius end mill with a TiAlN finish for longer tool life. Suited for steel, stainless steel, cast iron. 1-1/4 length of cut, 3-1/2 overall length. Series I4R.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishTiAlN

Coolant throughNo

Corner radius0.1250

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withToolholders

Helix styleMedium

Length of cut in1-1/4

Length typeRegular

Material applicationSteel; Stainless Steel; Cast Iron

Material removal typeRoughing

Mill diameter in5/8

Number of flutes4

Overall length in3-1/2

PitchNormal

Primary workpiece materialSteel; Stainless Steel; Cast Iron

Reach length1.2500

Secondary workpiece materialStainless Steel; Cast Iron

Shank diameter in5/8

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
