YG-1

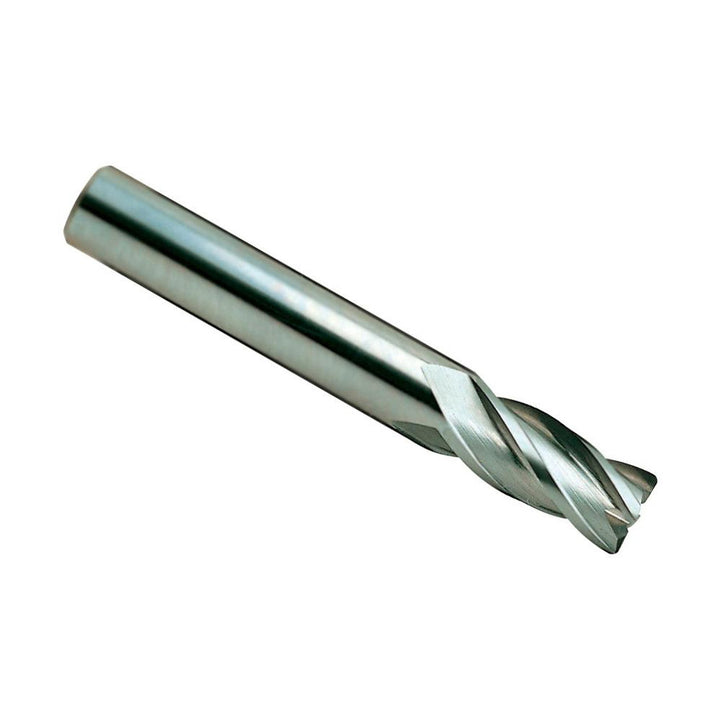

5/8in" 4-Flute Solid Carbide Square End Mill, TiAlN - YG-1 07595TF

MFR# 07595TFSeries E5021

$156.55List $200.78 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter5/8in

Flutes4

MaterialSolid Carbide

CoatingTiAlN

Description

The YG-1 07595TF is a 5/8in 4-flute Solid Carbide (Micrograin) square end mill with a TiAlN finish for longer tool life. Suited for steel. 1-1/4in length of cut, 3-1/2in overall length. Series E5021.

Specifications

CentercuttingNo

ChipbreakerNo

Coating finishTiAlN

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut in1-1/4in

Length typeRegular

Material gradeMicrograin

Mill diameter in5/8in

Mill diameter tolerance0.0000 to -0.0012 in

Number of flutes4

Overall length in3-1/2in

Primary workpiece materialSteel

Secondary workpiece materialStainless Steel; Non-Ferrous Metal; Hard Material

Shank diameter in5/8in

Shank diameter tolerance+0.0000 to -0.0005 in

Shank typeStraight-Cylindrical

Variable helixNo

Variable indexNo

Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
