YG-1

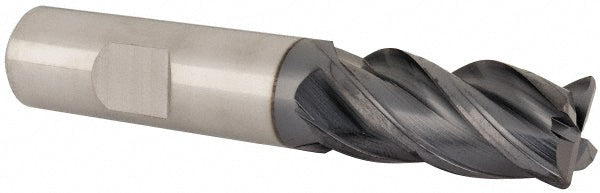

5/8" 4-Flute Solid Carbide Square End Mill, AlTiN - YG-1 EMB37040

MFR# EMB37040Series EMB37

$194.34List $249.25 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter5/8

Flutes4

MaterialSolid Carbide

CoatingAlTiN

Description

The YG-1 EMB37040 is a 5/8 4-flute Solid Carbide (Micrograin) square end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, superalloys & titanium. 1-1/4 length of cut, 3-1/2 overall length. Series EMB37.

Specifications

CentercuttingNo

ChipbreakerNo

Coating finishAlTiN

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Length of cut in1-1/4

Length of cut range1.2500 - 1.5000

Length typeRegular

Material gradeMicrograin

Mill diameter in5/8

Mill diameter tolerance0.0000 to -0.0012 in

Number of flutes4

Overall length in3-1/2

Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium

Shank diameter in5/8

Shank diameter toleranceh6

Shank typeWeldon Flat

Variable helixNo

Variable indexNo
