Kennametal

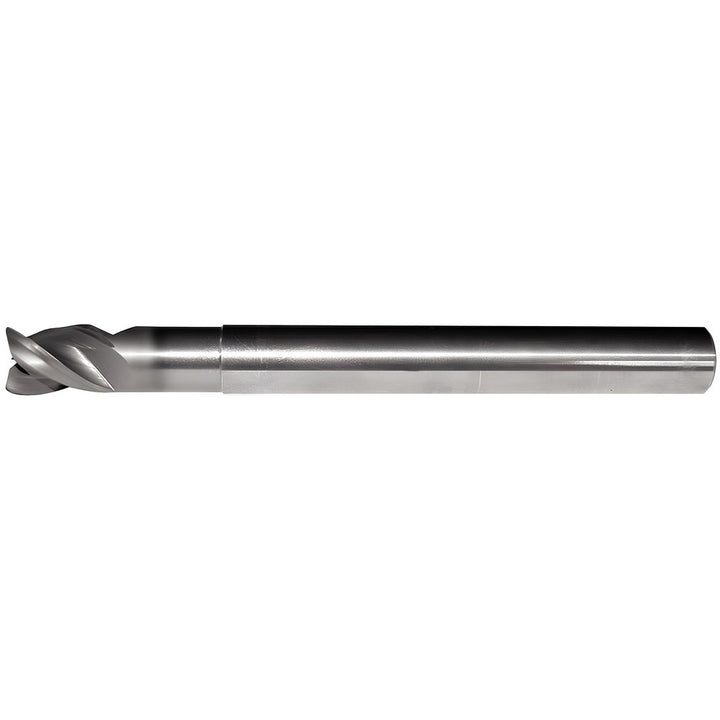

5/16" 3-Flute Solid Carbide Corner Radius End Mill - Kennametal 3755898
MFR# 3755898Series ABDE
$124.71List $159.94
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter5/16
Flutes3
MaterialSolid Carbide
CoatingBright/Uncoated
Description
The Kennametal 3755898 is a 5/16 3-flute Solid Carbide (Submicron) corner radius end mill. Suited for non-ferrous metal. 7/16 length of cut, 4 overall length. Series ABDE.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishBright/Uncoated
Coolant throughNo
Corner radius0.0300
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachYes
Flute directionRight Hand
Flute typeSpiral
For use withHC 20M - HC 32M Hydraulic Sleeves Metric with Inch Bores; HC 1/2 - HC 1 1/4 Hydraulic Sleeves Inch with Inch Bores; ER Single Angle Standard Collets; ER Single Angle Standard Collets; TT-SS
Helix styleHigh
Length of cut in7/16
Length typeShort
Material applicationNon-Ferrous Metal
Material gradeSubmicron
Material removal typeRoughing
Mill diameter in5/16
Mill diameter tolerance+0.000000/-0.000350 in
Neck diameter0.2930
Number of flutes3
Overall length in4
PitchCoarse
Primary workpiece materialNon-Ferrous Metal
Reach length in1-1/8
Shank diameter in5/16
Shank diameter tolerance+0.00000/-0.00035 in
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
