SGS

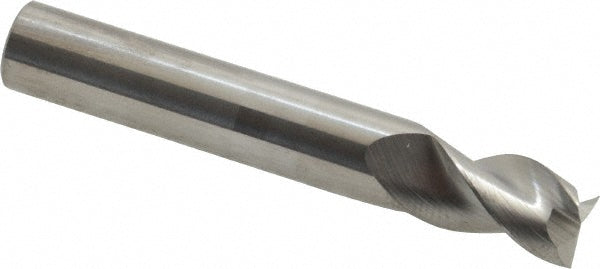

5/16" 3-Flute Solid Carbide Square End Mill - SGS 34706
MFR# 34706Series 43
$35.30List $45.27
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter5/16
Flutes3
MaterialSolid Carbide
Description
The SGS 34706 is a 5/16 3-flute Solid Carbide square end mill. Suited for non-ferrous metal. 7/16 length of cut, 2 overall length. Series 43.
Specifications
CentercuttingNo
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle38
Length of cut in7/16
Length of cut range0.3000 - 0.5000
Length typeRegular
Mill diameter in5/16
Mill diameter tolerance+0.00000/-0.00035 in
Number of flutes3
Overall length in2
Primary workpiece materialNon-Ferrous Metal
Shank diameter in5/16
Shank diameter tolerance+0.00000/-0.00035 in
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
Can't find your exact tool?Send us a part number — we'll cross-reference it.
Dull tools?Regrinding extends tool life and saves cost.
Alternate & equivalent tools
Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
